1. Daylight factor simulation applying different Window Wall Ratio (WWR)


The purpose of this study is to analyze the indoor daylight condition (Daylight Factor) of the existing building(1 floor) at UNC Charlotte. The current window-wall ratio(WWR) of this building is 40% and the window wall ratio will be changed to compare the indoor daylight condition.

​

In order to compare the daylight result, this research used DF(Daylight Factor)

DF = 100 * Ein / Eext

Ein = inside illuminance at a fixed point

Eext = outside horizontal illuminance under an overcast sky

​

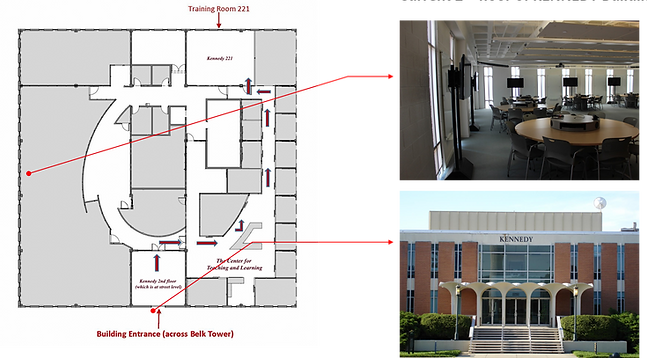

2. The Current condition of Kennedy building (Floor plan)


3. Parametric modeling for generating the different Window Wall Ratio


4. Daylight Factor Simulation result
